ADDMOTOR GRANDTAN X M-340X FULL-SUSPENSION E TRIKE

Dual Suspensions

GRANDTAN X trike redefines comfort on three wheels with its dual shock absorption system, featuring Addshox front suspensions and rear spring shock absorbers. It efficiently absorbs vibrations and bumps for a smooth, enjoyable ride.

UL-Certified Samsung Cell Battery

The 48V*20Ah high-capacity battery provides plenty of power with a range of up to 135 KM. The UL-certified battery in the US and Canada keeps your ride safe and secure.

500W Rear Motor

The rear-mounted motor makes the Grandtan much more stable and helps maintain a better balanced ride when climbing hills.

Speed Differential

Enhances etrike’s performance and maneuverability, ensuring safe turning and cornering.

Specifications

Display	Addmotor EB 2.0 LCD Display
Throttle	Variable Speed Control – Removable Thumb Throttle
Lights	EB 2.0 front light and 5-in-1 taillight
Pedal Assist	7 Level Pedal Assist – Torque Sensor
Frame	6061 Aluminum Alloy Frame
Front Fork	Oil Spring Fork with 80mm of Travel & Rear Shock Absorber
Brake	Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors	180mm Front / 2*180mm Rear Rotors on 3 Wheels
Handlebar	Black Aluminum 630mm Wide Sweep Back
Saddle	Addmotor Exclusive Well Padded Saddle with Backrest
Rims	Aluminum Double Wall 36H
Spokes	Stainless Steel F: 12-Gauge R: 13-Gauge
Crankset	Prowheel Ounce 48T Chainring 170mm Crank Length
Derailleur	SHIMANO TOURNEY TY300 Rear Derailleur 7-Speed
Chain	KMC Rust Resistant Chain

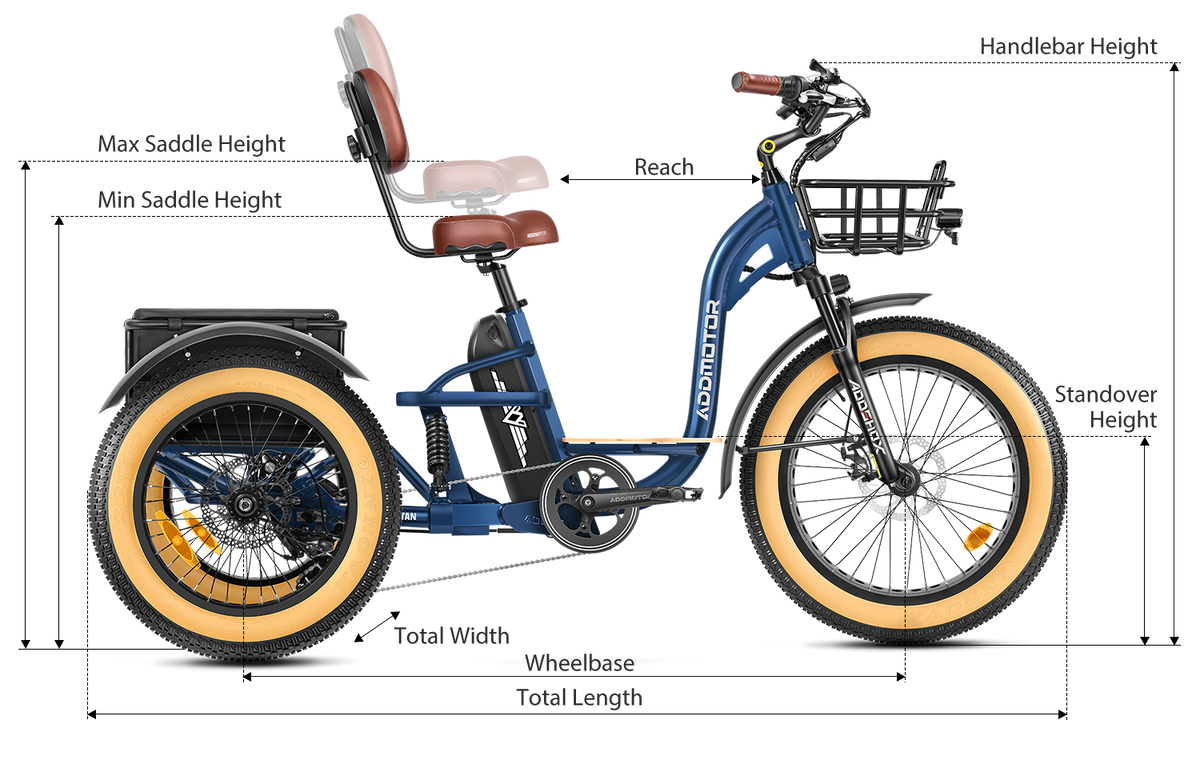

Size & Fit

Rider Height	157cm – 193cm
Tyre Size	61cm X 10cm F & 51cm X 10cm R
Reach	330mm
Wheel Base	1349mm
Total Length	1971mm
Total Width	821mm
Standover Height	445mm
Mini Saddle Height	826mm
Max Saddle Height	991mm
Handlebar Height	1092mm – 1220mm
